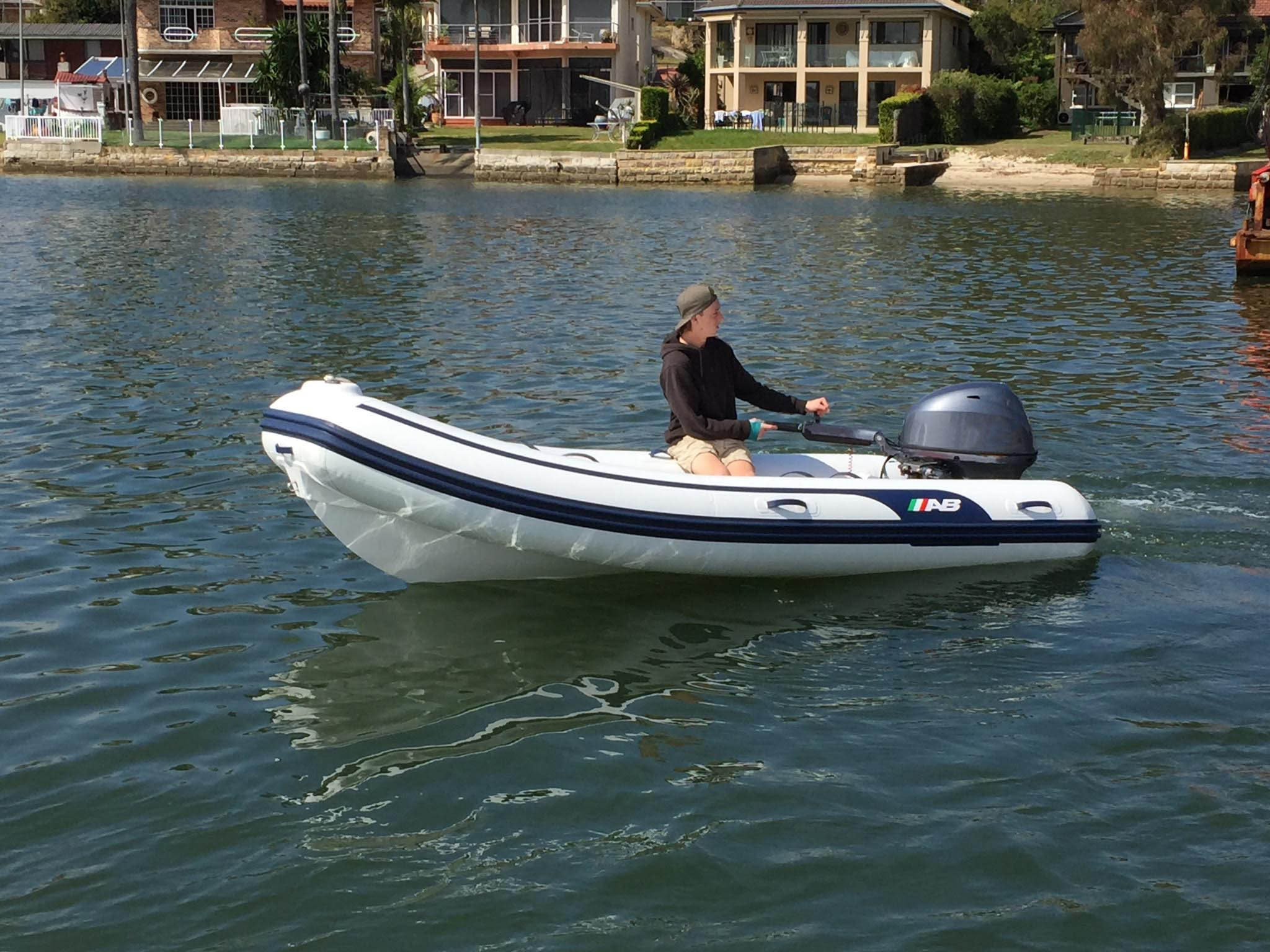

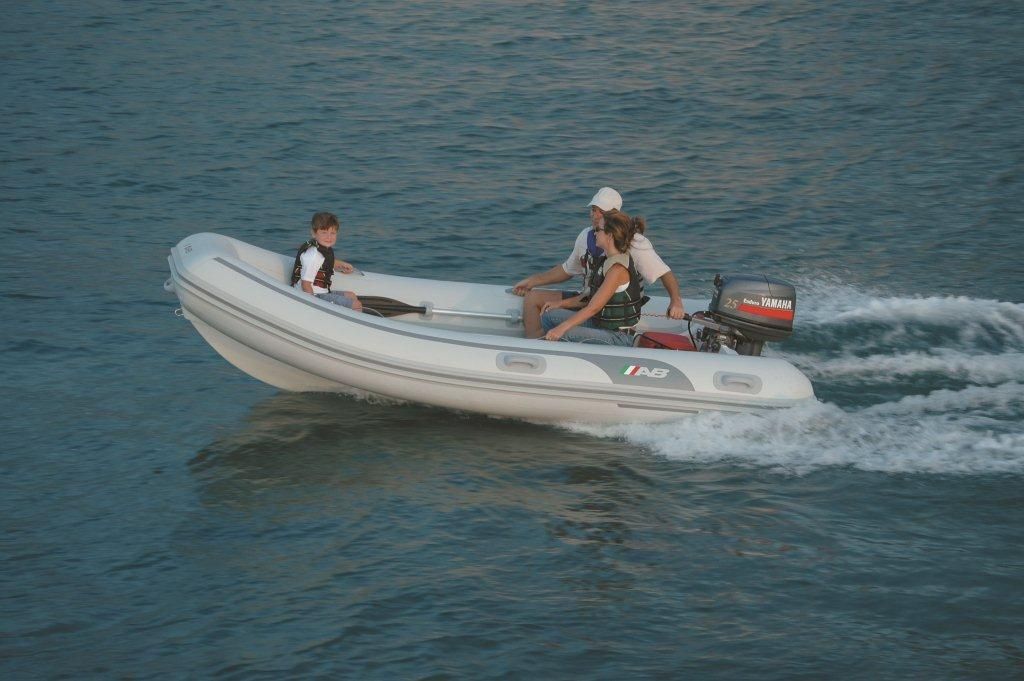

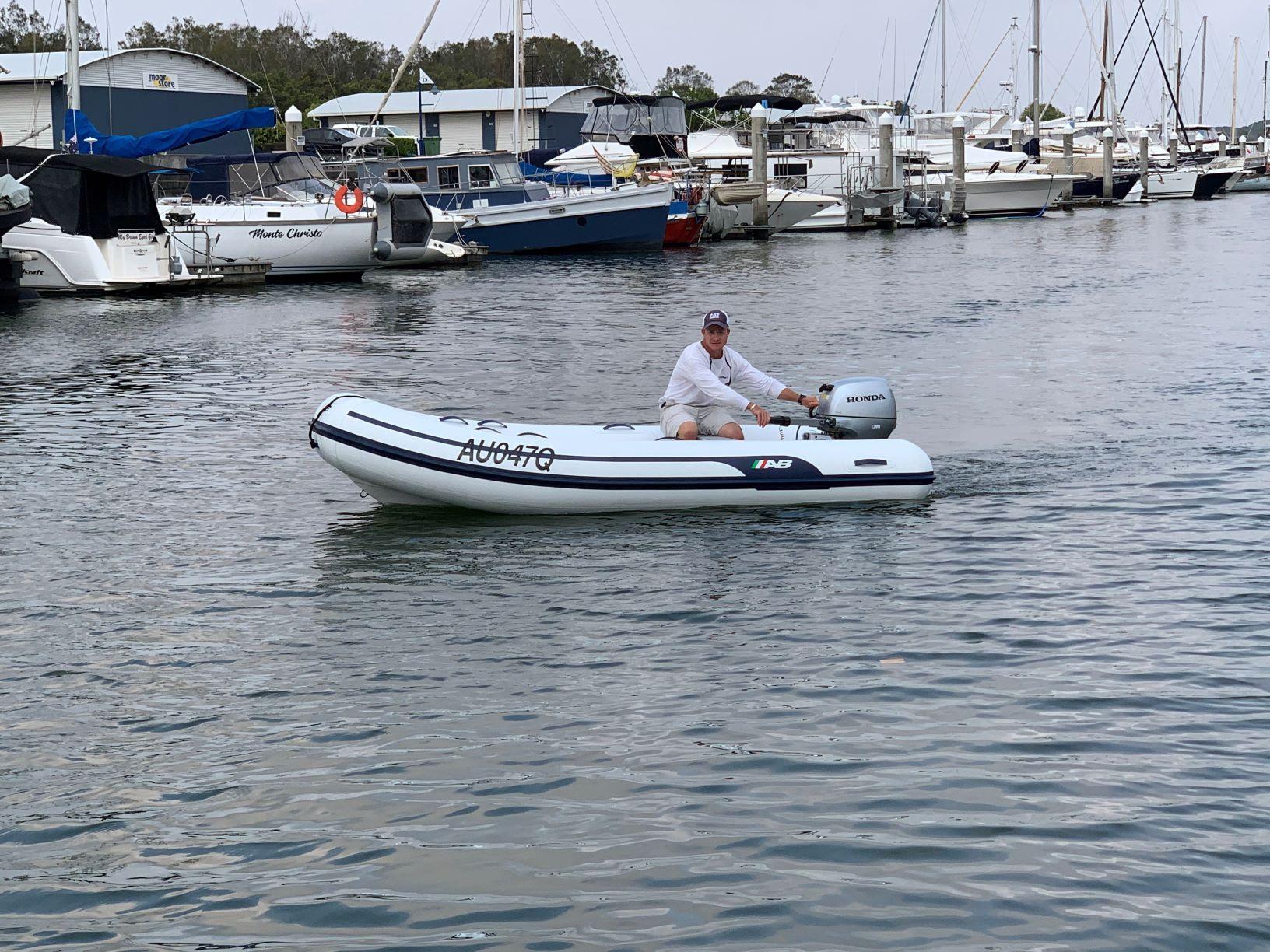

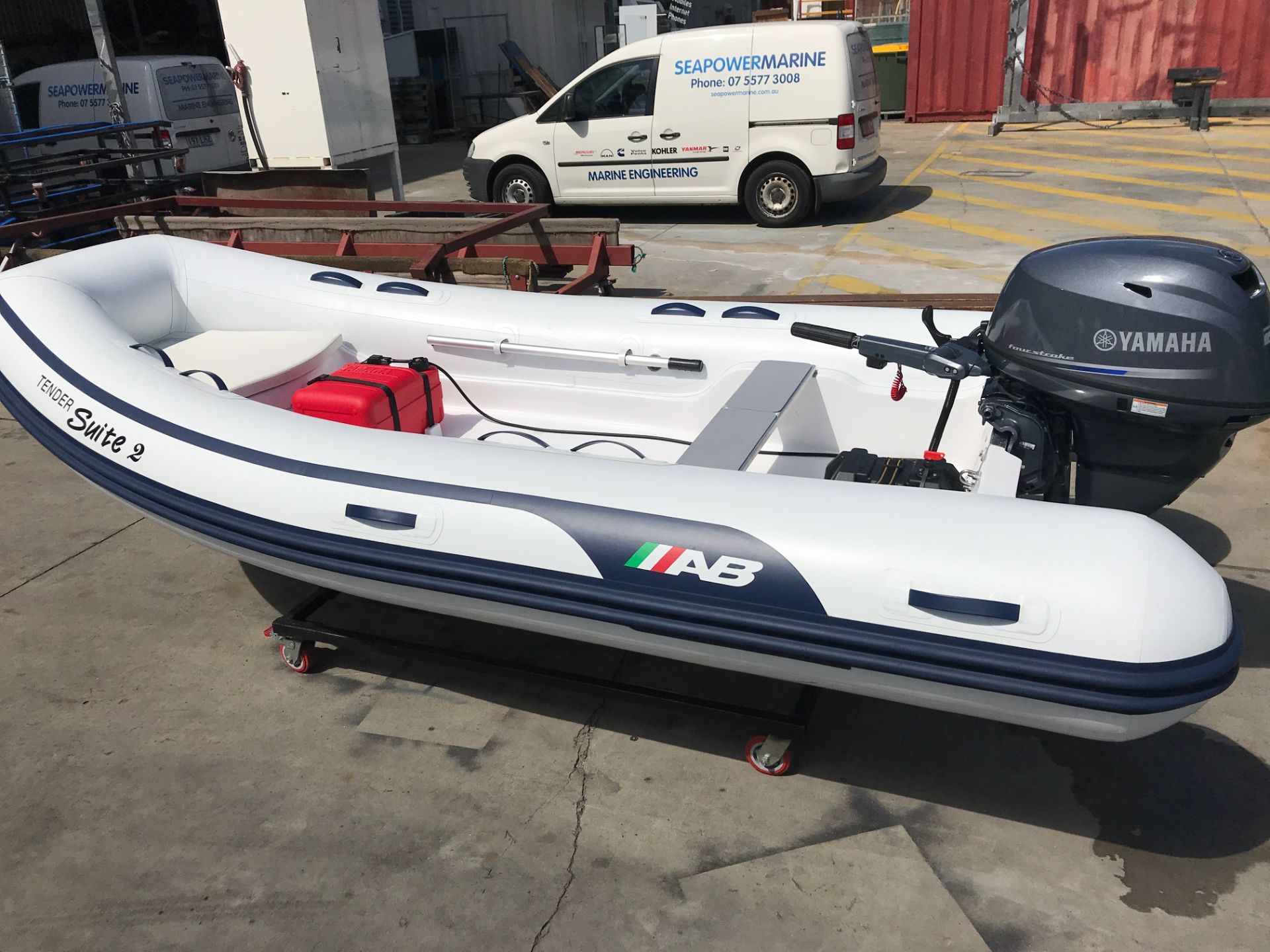

The AB Navigo 13 VS is designed to be a stable, dry comfortable RIB with a large open deck, suitable for operation as a tender alternatively a day boat for fishing, diving, crabbing, spearfishing and other water sports. The deep V provides for good sea keeping in the worst of chop and slop. Capable of accomodating relatively large horsepower it makes a useful people carrier.

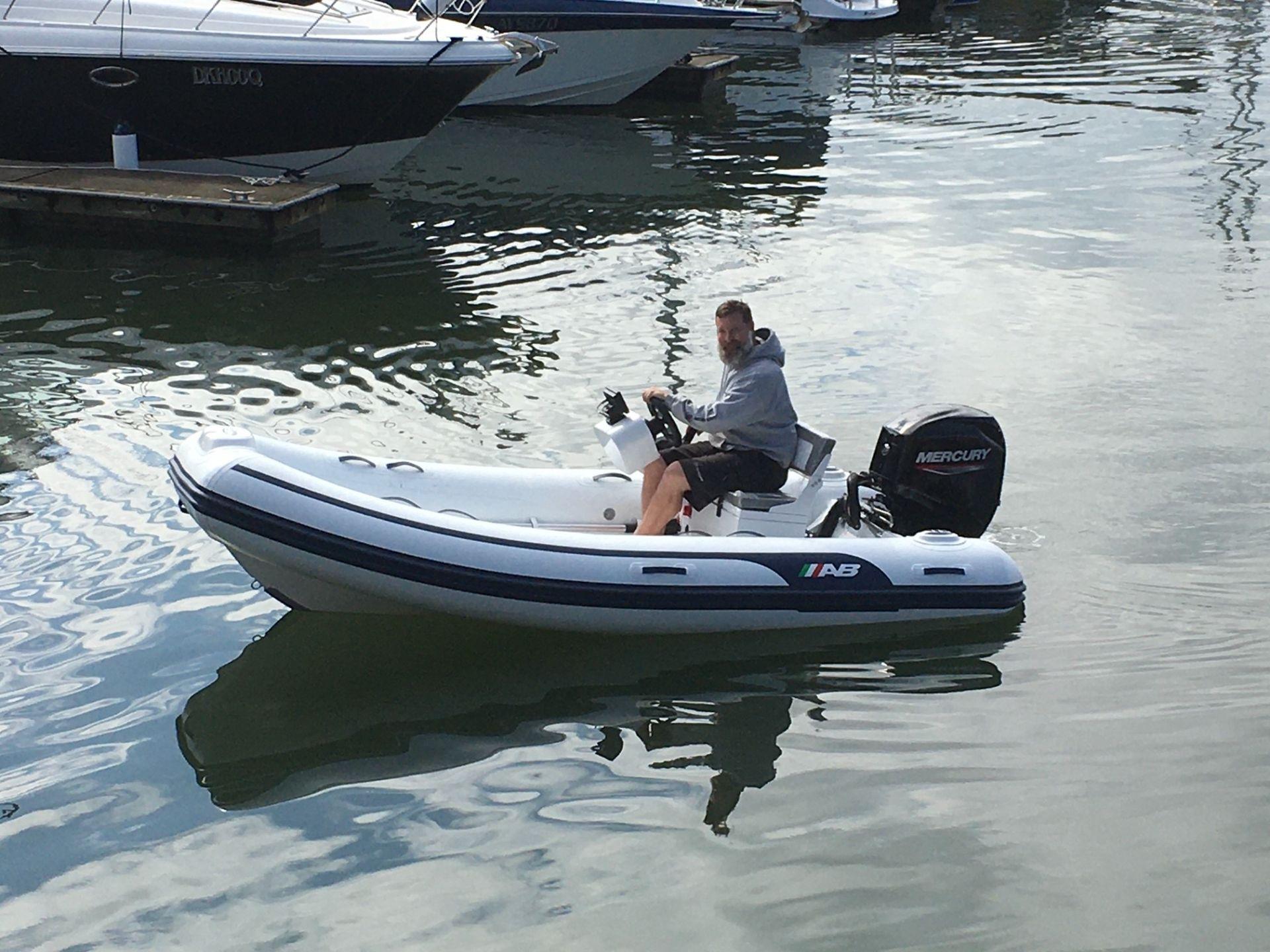

The AB Navigo Vs 13 is capable of being turned into a centre console including special and customized requirements. The AB Navigo range especially suits a skeleton console.

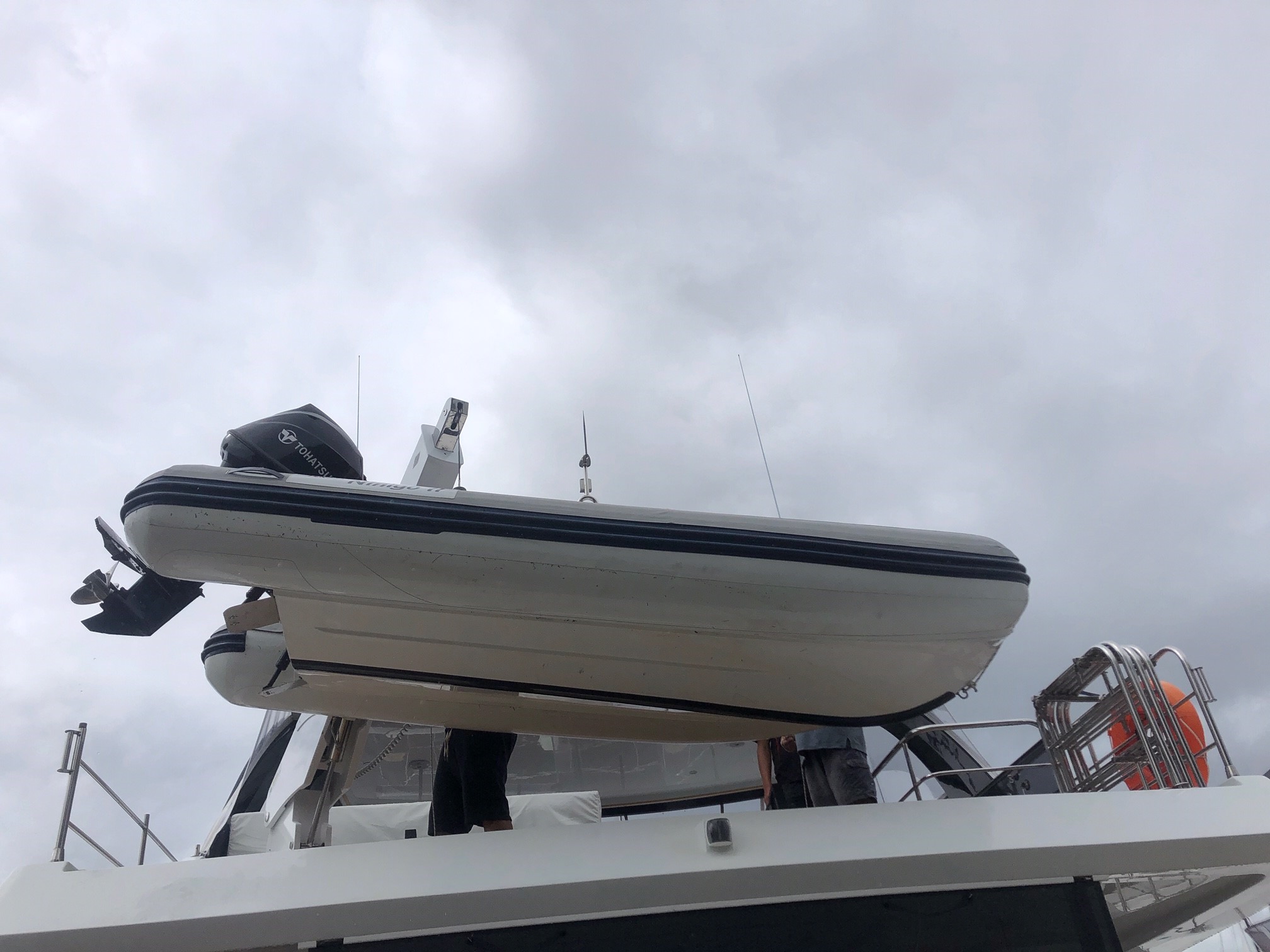

The AB Navigo is internationally certified and is a Category C boat. This makes it in terms of carrying capacity the equivalent of a much larger rigid boat. There are a range of commercial applications the Navigo 13 VS is suitable for such a non-SOLAS rescue boat, yacht club support RIB, sail training, marine research and construction.
Specifications:
Overall Length
|
13’ / 3.96m
|
Overall Beam
|
6’4” / 1.94m
|
Internal Length
|
9’9” / 2.97m
|
Internal Beam
|
3’1” / 0.94m
|
Tube Diameter
|
18” / 0.46m
|
Number of Chambers
|
3+1
|
Weight (Preliminary)
|
293lbs / 133kg
|
Persons Capacity
|
7
|
Recommended HP
|
30HP
|
Max HP
|
40HP
|
Shaft Length Option 2
|
20” / 50.8cm
|
RDC Design Category
|
C
|
Standard Equipment:
- Hand Laid Fiberglass Deep “V” Hull
- Stringer System Laminated into Hull
- Bow Locker/ Seat
- Diamond Shape Non-Skid Deck
- Plastic External Transom Plate
- Aluminium Internal Transom Plate
- Orca (CSM) Five-layer Coated fabric
- 3 Push-Push Plastic Non-Corrosive 2 Stage Inflation Valves
- Raised Double Rub Rail
- Stainless Steel Bow Eye
- 4 Stainless Steel Davit lifting Points
- Stainless Steel Towing Rings & Tie Downs
- Deck Condensation Plug
- Deck Drain with Plug
- 1 Front & 4 Side Orca (CSM) fabric Handles on Tubes
- 2 Inside Bow Sets of 2 Orca (CSM) fabric Handles on Tubes
- 2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
- 3 Layer Reinforced Seams
- Paddle with Aluminium Shaft
- Paddle Holders
- Removable Stern Seat
- Hand Pump
- Maintenance Kit
- Owner’s Manual
- Additional Air Retaining Chamber under the Floor
Optional Equipment:
- Bow Hatch Cushion
- Boat Cover
- Chock Set
- Bow Step with Fold Down Stainless Steel Cleat
- Lateral Fold Down Stainless Steel Cleat
- Removable Rowing Seat
- Bimini Top
- Fiberglass Console
- Fiberglass Console with Forward Seat
- Bench Seat with Storage
- Two Person Jockey Seat
- Stainless Steel helm unit
