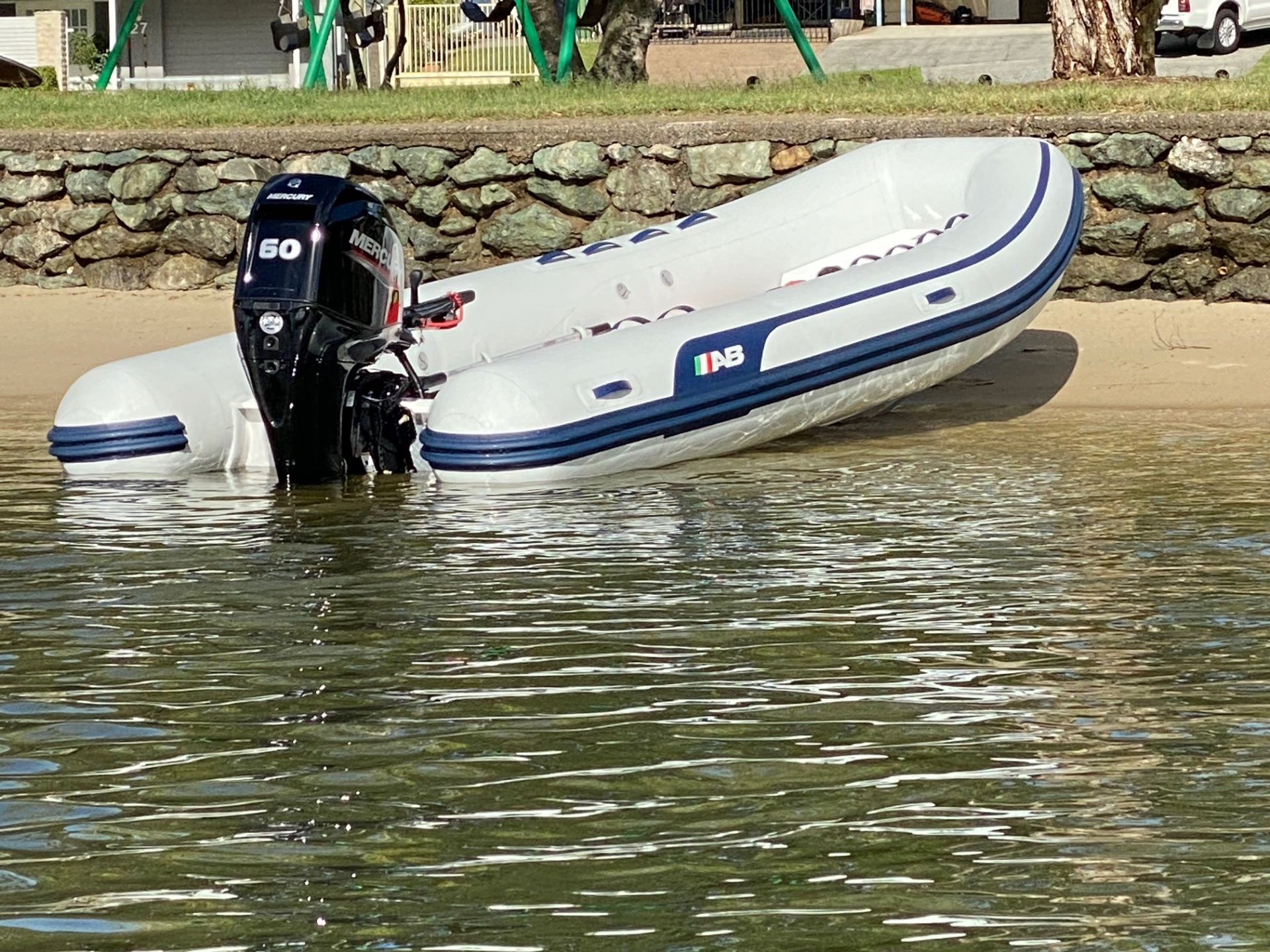

AB Navigo Vs 15 -fibre glass hull-Inflatable RIB

The Navigo 15 VS is a mid length RIB, designed for use as a tender for an ocean cruiser alternatively as a sport or day boat. With its deep V, large tubes and big deck space it provides for a versatile platform for a number of different operations including passenger conveyance, diving fishing, spear fishing or just water sports with the kids. The AB Navigo Vs 15 makes for a big tender with good sea capacity is perfect for diving, spear fishing, fishing and crabbing.

The AB Navigo Vs 15 is capable of being turned into a centre console, with a number of different options allowing for it to be made into a specialist RIB.

Being an internationally certified Category C class vessel, the AB Navigo is qualified for a number of commercial uses such as a Non Solas Rescue Boat. It is sought after for applications such as commercial tender, safety vessel for sport clubs such as yacht clubs, construction work, work boats, research vessel and the like. T

Specifications:

Overall Length

15’ / 4.57m

Overall Beam

6’6” / 1.99m

Internal Length

11’6” / 3.50m

Internal Beam

3’2” / 0.97m

Tube Diameter

19” / 0.48m

Number of Chambers

5

Weight (Preliminary)

484lbs / 220kg

Persons Capacity

11

Recommended HP

60HP

Max HP

75HP

Shaft Length Option 2

20” / 50.8cm

RDC Design Category

C

Standard Equipment:

  • Hand Laid Fiberglass Deep “V” Hull
  • Stringer System Laminated into Hull
  • Bow Locker/ Seat
  • Diamond Shape Non-Skid Deck
  • Plastic External Transom Plate
  • Aluminium Internal Transom Plate
  • Orca (CSM) Five-layer Coated fabric
  • 4 Push-Push Plastic Non-Corrosive 2 Stage Inflation Valves
  • Raised Double Solid Rub Rail
  • Stainless Steel Bow Eye
  • 4 Stainless Steel Davit lifting Points
  • Stainless Steel Towing Rings & Tie Downs
  • 2 Deck Drain with Plug
  • 1 Front & 4 Side Orca (CSM) fabric Handles on Tubes
  • 2 Inside Bow Sets of 4 Orca (CSM) fabric Handles on Tubes
  • 2 Inside Stern Double Orca (CSM) Fabric Handles on Tubes
  • 3 Layer Reinforced Seams
  • Paddle with Aluminium Shaft
  • Paddle Holders
  • Hand Pump
  • Maintenance Kit
  • Owner’s Manual

Optional Equipment:

  • Fuel Tank
  • Bow Hatch Cushion
  • Boat Cover
  • Chock Set
  • Bow Step with Fold Down Stainless Steel Cleat
  • Lateral Fold Down Stainless Steel Cleat
  • Removable Rowing Seat
  • Bimini Top
  • Fiberglass Console
  • Fiberglass Console with Forward Seat
  • Bench Seat with Storage
  • Two Person Jockey Seat
  • Stainless Steel helm unit
Price $19 994.00 -hull only AUD
Model Navigo VS 15
Length 4.57 Meters
Engine Make Mercury
Condition New
